Automotive interior trim best soundproofing fabric
CICSORB Acoustics Insulation is a superior sound absorbing material specifically designed for a variety of acoustic control applications. It is compressible, nonlinting, lightweight, formable and it can be easily die cut and heat sealed. It is recommended for acoustic control in vehicle door panels, headliners, wheel wells, pillars, and instrument panels.
General Properties
Composition Web | 65% Polypropylene + 35% Polyester |
Composition Scrim | One side 100% Polypropylene fabric |
Color | Single white fabric |
Material Weight | 220 ± 10 g/m2 |
Material Thickness | 12mm ± 2mm |
Density | 16.0 Kg/m3 |
Flammability | 0mm/min (A-0) |
Heat aging | 120℃ for 2000 Hours |
Tensile Strength | MD: 9.0-10.0 N CD: 10.0-12.0 N |
Moisture absorption | ≤ 0.4% |
Heat Conductivity | 0.032 W/m·K |
Dimensions | 1.52 X 50 meters |

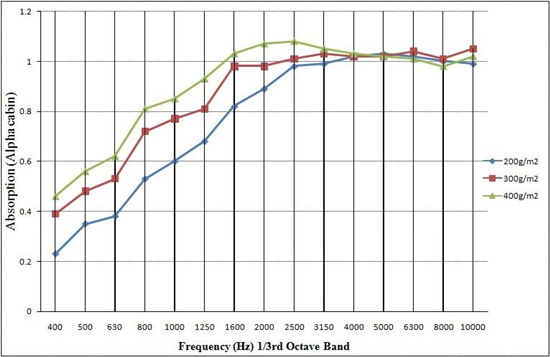

Average performance of CIC Sound Absorption Products grouped by weight
CICSORB Acoustics absorption materials application
1. A-B-C Pillar 2. Door Hole Seal 3. Headliner 4. Rear Parcel Shelf 5. Cargo Load Floor 6. Trunk Trim 7. Floor 8. Door Trim 9. Center Console 10. Fender Liner 11. Engine Under Cover 12. Instrument Panel |
Key benefits
· Reduces vehicle weight when compared with felt, foam and polyester materials.
· Easy to compress and highly conformable, enabling installation in smaller cavities.
· Production costs can be reduced as less material is required.
· Hydrophobic, non-woven structure allows both interior and exterior use without the need for a waterproofing barrier.
· Easily recycled as it is a Polypropylene blend the product resists mould and mildew growth so no odors or material degradation occurs.
